組合工具柜

產品簡介

    工具柜是為制造企業對工具、量具、夾具、刀具、零部件等物料在作業現場中科學定置管理設計而設計的，它具有科學化的物料管理、人性化的使用方式等特性；使物料的管理符合定置、分區、目視管理的要求，并且滿足現場作業人員使用的安全性及便利性；作為重要的物料管理設備之一，它具有存放量大、承重大、分隔分類目視效果佳等特點，使物料存取做到準確、高效、安全、合理。

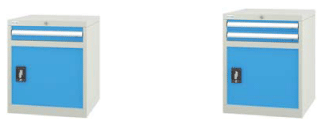

型號 規格 CCFL061 W564xD572xH650 CCML061 W717xD572xH650 配置 100x1，擱板1層 導軌EA/VA/LA 型號 規格 CCFL071 W564xD572xH700 CCML071 W717xD572xH700 配置 75x2，擱板1層 導軌EA/VA/LA

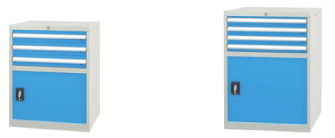

型號 規格 CCFL081 W564xD572xH850 CCML081 W717xD572xH850 配置 100x3，擱板2層 導軌EA/VA/LA 型號 規格 CCFL101 W564xD572xH1000 CCML101 W717xD572xH1000 配置 75x4，擱板2層 導軌EA/VA/LA

型號 規格 CCML111 W717xD572xH1150 CCTL111 W870xD572xH1150 CCWL111 W1023×D572×H1150 配置 200x1,擱板2層 導軌EA/VA 型號 規格 CCML111 W717xD572xH1150 CCTL111 W870xD572xH1150 CCWL111 W1023×D572×H1150 配置 125x2，擱板2層 導軌EA/VA

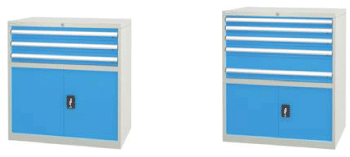

型號 規格 CCML102 W717xD572xH1000 CCTL101 W870xD572xH1000 CCWL101 W1023×D572×H1000 配置 100x3，擱板1層 導軌EA/VA 型號 規格 CCML113 W717xD572xH1150 CCTL113 W870xD572xH1150 CCWL113 W1023×D572×H1150 配置 75x2,100x2,200x1，擱板1層 導軌EA/VA

型號 規格 CCML114 W794xD572xH1150 CCWL114 W1100xD572xH1150 配置 200x2，擱板2層 導軌EA/VA/LA 型號 規格 CCML115 W794xD572xH1150 CCWL115 W1100xD572xH1150 配置 125x4，擱板2層 導軌EA/VA/LA

型號 規格 CCML103 W794xD572xH1000 CCWL02 W1100xD572xH1000 配置 50x2,75x2,125x2，擱板2層 導軌EA/VA/LA 型號 規格 CCML104 W794xD572xH1150 CCWL03 W1100xD572xH1150 配置 50x4,75x4   擱板2層 導軌EA/VA/LA

型號 規格 CCML072 W717xD572xH700 CCTL071 W870xD572xH700 CCWL071 W1023×D572×H700 配置 100x2,200x2，擱板1層 導軌EA/VA/LA 型號 規格 CCML073 W717xD572xH700 CCTL072 W870xD572xH700 CCWL072 W1023×D572×H700 配置 75x2,100x1,150x1,200x1， 擱板1層，導軌EA/VA/LA

型號 規格 CCML105 W717xD572xH1000 CCTL102 W870xD572xH1000 CCWL104 W1023×D572×H1000 配置 100x2,150x2,200x2，擱板2層 導軌EA/VA/LA 型號 規格 CCML106 W717xD572xH1000 CCTL103 W870xD572xH1000 CCWL105 W1023×D572×H1000 配置 75x2,100x2，150x2，250x1 擱板3層  導軌EA/VA/LA

型號 規格 CCML082 W717xD572xH850 CCTLL081 W870xD572xH850 CCWL081 W1023×D572×H850 配置 75x2,100x3,150x2， 擱板1層 導軌EA/VA/LA 型號 規格 CCML116 W717xD572xH1150 CCTLL114 W870xD572xH1150 CCWL116 W1023×D572×H1150 配置 50x1,75x2,100x4,150x3， 擱板3層 導軌EA/VA/LA

型號 規格 CCML107 W717xD572xH1000 CCTLL104 W870xD572xH1000 CCWL106 W1023×D572×H1000 配置 50x1,100x5,150x1,200x1， 擱板2層  導軌EA/VA/LA 型號 規格 CCML117 W717xD572xH1150 CCTLL115 W870xD572xH1150 CCWL117 W1023×D572×H1150 配置 75x4,100x4,150x1,200x1， 擱板3層  導軌EA/VA/LA

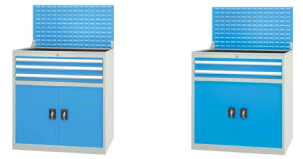

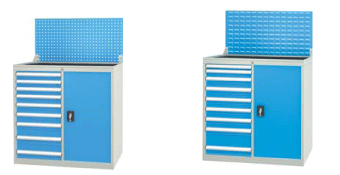

型號 規格 CCTL141 W870xD572xH1450 CCWL141 W1023×D572×H1450 配置 掛板H450 75x4,100x3,150x2 擱板2層，導軌EA/VA/LA 型號 規格 CCTL142 W870xD572xH1450 CCWL142 W1023×D572×H1450 配置 掛板H450 50x2,100x6,200x1 擱板2層，導軌EA/VA/LA

型號 規格 CCTL143 W870xD572xH1450 CCWL143 W1023×D572×H1450 配置 掛板H450 75x2,100x1, 擱板1層，導軌EA/VA 型號 規格 CCTL144 W870xD572xH1450 CCWL144 W1023×D572×H1450 配置 掛板H450  100x2  擱板1層 導軌EA/VA

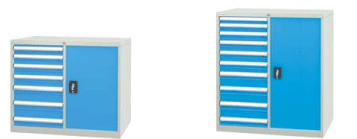

型號 規格 CCTL073 W870xD572xH700 CCWL073 W1023×D572×H700 配置 柜體寬度A：411x2，B：564x2 200x6  導軌EA/VA/LA 型號 規格 CCTL074 W870xD572xH700 CCWL074 W1023×D572×H700 配置 柜體寬度A：411x2，B：564x2 100x4,200x4;  導軌EA/VA/LA

型號 規格 CCTL073 W820xD572xH1000 CCWL073 W1126×D572×H1000 配置 柜體寬度A：411x2，B：564x2 100x4,150x4,200x4 導軌EA/VA/LA 型號 規格 CCTL106 W820xD572xH1000 CCWL108 W1126×D572×H1000 配置 柜體寬度A：411x2，B：564x2 75x4,100x4,150x4,250x2 導軌EA/VA/LA

型號 規格 CCTL075 W820xD572xH700 CCWL075 W1126×D572×H700 配置 柜體寬度A:411+564,B:411+717 200x6 導軌EA/VA/LA 型號 規格 CCTL076 W820xD572xH700 CCWL076 W1126×D572×H700 配置 柜體寬度A:411+564,B:411+717 100x4,200x4 導軌EA/VA/LA

型號 規格 CCTL107 W820xD572xH1000 CCWL109 W1126×D572×H1000 配置 柜體寬度A:411+564,B:411+717 100x4,150x4,200x4 導軌EA/VA/LA 型號 規格 CCTL107 W820xD572xH1000 CCWL109 W1126×D572×H1000 配置 柜體寬度A:411+564,B:411+717 75x4,100x4,150x4,250x2 導軌EA/VA/LA
